The Geko 4D Laser Level is an advanced measuring tool designed for precise determination of horizontal, vertical, and angled lines within a 360° range. With 4 planes (2 horizontal and 2 vertical) and 16 laser lines, it enables simultaneous display of lines in various directions, significantly improving construction, renovation, and finishing work. The product features a green laser beam, which offers greater visibility than traditional red lasers, even in bright rooms or over long distances (up to 40 meters).
Key Features:
- 360° line range
- Multiple laser positioning options
- 4 planes – 16 lines
- Self-leveling
- Powerful green beam
- Easily replaceable battery
Technical Specifications:
- Manufacturer: Geko
- Battery: 2x Li-ion 3.7V, 3000 mAh capacity
- Maximum working range: up to 40 meters
- Automatic leveling: ≤ 3°
- Pendulum stabilization time: < 4 seconds
- Laser class: II
- Laser wavelength: 505 - 520 nm
- Beam color: intense green
- Number of 360° heads: 4 (2 horizontal, 2 vertical)
- Number of lines/crosses: 16 lines / 10 crosses
- Slopes with locked pendulum: Yes (enables angled line projection)
- Remote control: Yes (included, with battery)
- Mounting threads: 1/4” and 5/8” (compatible with most tripods)
- Device weight with battery: 615 g
- Stabilization: Pendulum system with automatic leveling function
- Dimensions: 14 x 14 x 7 cm

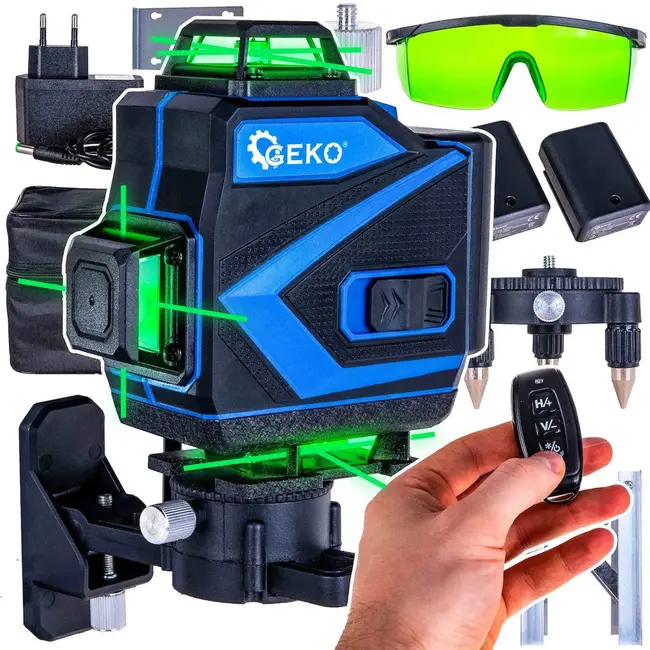

Included in the Set:
- Geko 4D Laser Level
- Remote control
- 2x Li-ion battery
- Charger
- Magnetic wall mount with an additional metal plate
- Protective glasses
- 1/4” adapter
- Mini tripod
- Additional adjustable platform
- Convenient carrying case with foam padding
- User manual
